Custom Mesh/Gauge/Load With DFM Engineering

Custom Wire Shelving Manufacturing Services — leverage China-based OEM/ODM for durable, cost-effective wire shelving to your exact size, load, and finish specs.

You need racks that survive water, heat, restock rush, and clumsy users. Let’s keep it plain: choose mesh, gauge, and load by scenario, not guesses. We’ll mix shop-floor talk, short tables, and links to your own pages so buyers can click, brief, and move.

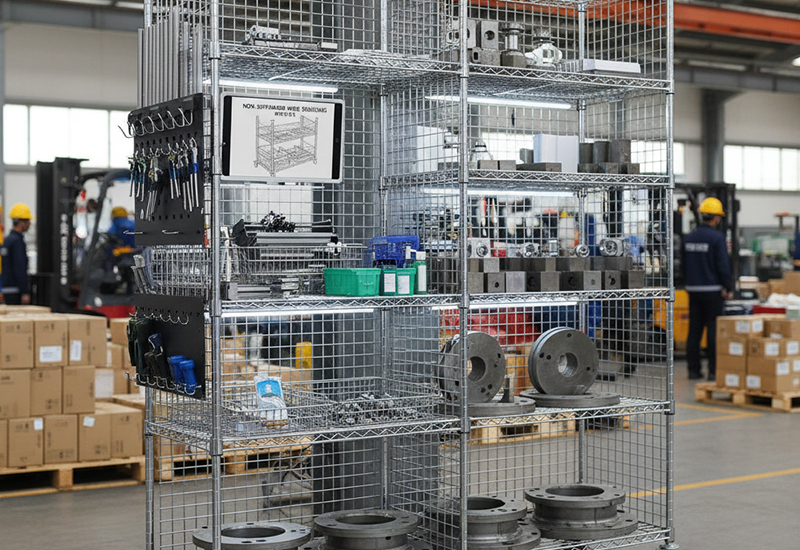

Non-standard Wire Shelving — Black/White Panel Options

Your Non-standard Wire Shelving category covers hybrid needs: airflow plus flat support, clean look plus real strength. The Black Panel Metal White Non-standard Wire Shelving layout shows exactly that—open wire for breathability, panel zones for small goods that like to tip. Great for boutique retail, hardware corners, pop displays, even backroom overflow.

Why people pick it

• Less wobble at the front edge (add a taller front bar if shoppers lean).
• Panel inserts stop heel-through; wire breathes so boxes don’t get musty.
• OEM/ODM and bulk purchase right on-page—no back-and-forth drama.

Dishwasher Wire Shelving — Kitchen-Grade, Water-Smart

Your Dishwasher Wire Shelving family is built for wet work. Think rust resistance, quick drainage, soap exposure, and high temp swings. A simple reference: Dishwasher Wire Shelving For Dishwasher Use. It calls out drainage logic, holders, and clean-up speed. Ops teams nod to that because it cuts daily hassle.

Glass & tray zones

• For bars and cafés, the Dish Drying Rack With Tray Drainer For Drying Glasses gives you the angle/flow idea. We scale that geometry up for OEM racks, add finer mesh under stems, and keep edges smooth so labels don’t snag.

Compartment & double-layer

• Sorting spoons, lids, plates? Use Compartment Kitchen Stainless Steel Dishwasher Wire Shelving for “zones” that make sense during rush.
• Need more capacity in the same footprint? The Custom Metal Art Double-layer Dishwasher Wire Shelving layout stacks function without turning into a teetering tower.

Mesh, Gauge, and Load — pick by need, not myth

• Gauge: thicker wire (lower “gauge”) = more stiffness, less sag. Thinner wire pairs with tighter mesh for small parts stability.
• Mesh pitch: tight pitch stops fall-through; wider pitch improves airflow and reduces spray trapping.
• Frame: front bar height and side rails control edge deflection, important where users lean or heavy bins land.
• Finish/Material: powder-coat for color and dry zones; 304 stainless for wet, heat, and scrub.

Table — Gauge × Mesh × Load (RFQ shorthand)

DFM Engineering — lock must-haves early

DFM isn’t theory; it’s fewer revisions. Your Customized Products → Non-standard Wire Shelving and → Dishwasher Wire Shelving flows already prompt buyers to choose OEM/ODM or Buy in Bulk, then drop sizes, finishes, and add-ons. That’s the right intake for predictable builds.

DFM intake (copy & paste)

• Target load per shelf + acceptable mid-span look (simple: “no visible sag under full load”).
• Mesh pitch (center-to-center) + gauge band (fine/mid/thick is okay if exact # unknown).
• Frame profile: front bar height, side rails, hook/clip/tabs.
• Finish: powder-coat color (RAL) or 304 stainless for wet/food.
• Zones: utensil holder, glass rails, board slot, tray angle.
• Drain/air goal: open area target or tray slope yes/no.
• Packaging: nested stacks, corner guards, polybag.

Small grammar? sure—dont over-spec everything on day one. Start with load + finish; we fill the rest.

Real-world Scenarios — faster picks, fewer emails

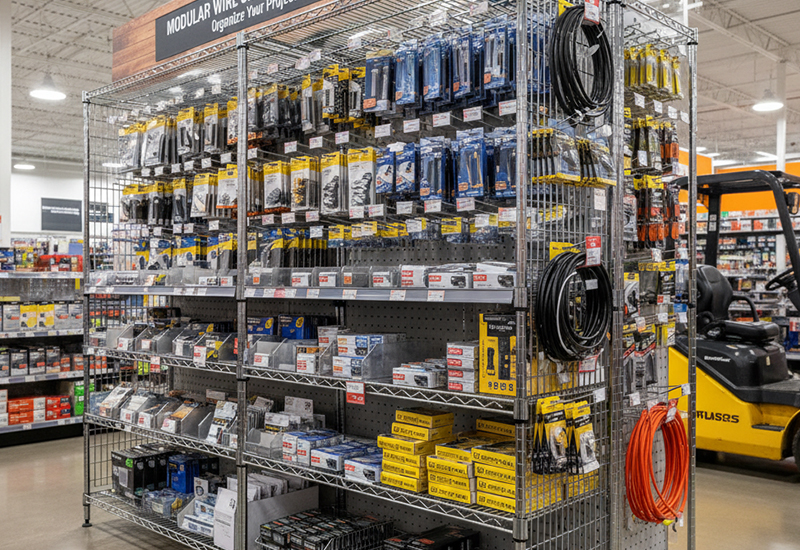

Retail end-cap (non-standard look)
Mid-thick gauge, medium pitch, taller front bar. If you want the contrast vibe, link Black Panel Metal White Non-standard Wire Shelving as the moodboard. We’ll keep costs sane and stiffness up.

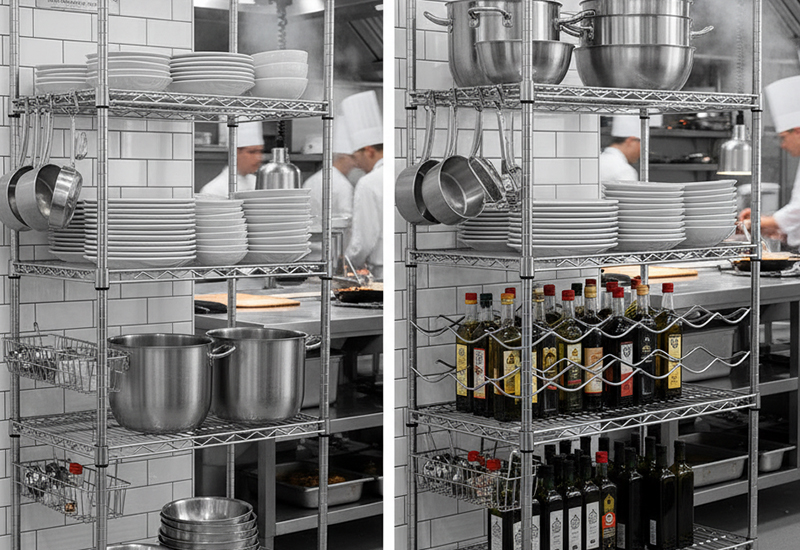

Dish station (high churn)
Stainless, tight mesh in utensil lanes, medium pitch under plates. Start from Dishwasher Wire Shelving For Dishwasher Use to visualize drain and accessory mounts. Add clip-on caddies so staff can re-arrange mid-shift.

Glass drying (bar/café)
Fine mesh under glasses, soft front edge, slight tray angle for drip. Use Dish Drying Rack With Tray Drainer For Drying Glasses to show the buyer what “no water ring, no tip” looks like.

Double-layer prep
Stack the light stuff up top, heavy below. Borrow geometry from Custom Metal Art Double-layer Dishwasher Wire Shelving. If pans are chunky, we thicken the lower frame and widen pitch for faster dry.

Cutlery chaos fix
Fine-mesh basket with dividers and real drain; consider Dishwasher Wire Shelving Storage Dishwasher Cutlery Basket if the buyer needs a visual shortcut.

Industry speak that solves pain (yes, the “black box” stuff)

• Edge deflection control: pick a taller front bar or add a double wire. Stops that tired “shelf smile.”
• Open-area ratio: match to drying goals; too tight traps spray, too wide loses support.
• Impact points: thicken at load-in zones where cases hit, not everywhere.
• Tool-less resets: clip systems beat welded tabs when planograms flip weekly.
• Chem-wash resilience: stainless beats pretty paint when soap + heat get wild.

Quality & Load Checks — short and real

• Static load on bench + mid-span glance: no visible sag at target.
• Weld audit: count and spot-check, especially at corners and mid rails.
• Finish check: adhesion for powder-coat; surface pass for stainless.
• Edge safety: hem/cap so cartons and hands don’t get scratched.
• Rinse & heat cycle (dishwasher line): catch coating lift early.

QIAO’s stable weld pool and jig discipline keep grids square after months of wet duty. So geometry doesn’t creep, holes still line up, and staff doesn’t swear at the night shift. It’s simple shop-floor discipline, not marketing fluff.

Table — Buyer Type × Pain × Levers × Example

Business Value — why this helps your buyers

• Faster spec: category pages match real use, not just pretty photos.
• Less rework: DFM intake locks load + finish first.
• Ops-friendly: tool-less resets, easy clean, stable geometry.
• Bulk & OEM/ODM: baked into the flow, so procurement doesn’t stall.

One-email brief (so we can quote quick)

1. Load per shelf + “no visible sag” yes/no.
2. Mesh pitch + gauge band (fine/mid/thick is fine if numbers fuzzy).
3. Finish: brand-color powder-coat or 304 stainless.
4. Zones: utensils, glasses, boards, trays.
5. Paste one-two reference links from your own site (above). We align, prototype, iterate.

That’s it. Short brief, quicker sample. We’ll dial mesh, gauge, and load so the shelf just do its job—wet or dry, front-of-house or back.
