Flux type can make or break reflow quality. Compare no-clean and water-soluble flux, learn why voids, spatter, and residue happen, and how to stabilize yields.
You can run a “perfect” reflow profile and still get ugly joints. Then you tweak peak temp by 3°C, and… nothing changes. That’s when flux starts to look less like a small detail and more like the steering wheel.
Flux isn’t just “sticky chemistry.” It controls wetting. It controls residue. It even controls how much gas you trap under the joint. If your SMT line feels moody, flux type is often the reason.
Let’s break it down in plain shop-floor terms, with real defects you see on AOI and X-ray.
If you want your team (and suppliers) to speak the same language, use IPC J-STD-004 style terms. It helps you compare apples to apples.
Here’s a simple cheat sheet. Don’t treat it like magic labels. Still test in your process.
| Label Pattern | What It Tells You | What You Usually Feel On The Line |
|---|---|---|
| RO / OR / IN | Base chemistry family (rosin/resin, organic, inorganic) | Changes residue “look,” cleaning behavior, and how “forgiving” wetting is |
| L / M / H | Activity level (Low / Medium / High) | Higher activity often wets easier, but can bring more residue risk |
| 0 / 1 | Halide content class (lower vs higher) | Impacts electrical reliability risk if residues stay on the board |
You’ll hear people say “ROL0 is safe, ROL1 is risky.” That’s too simple. In real life, board finish, paste volume, atmosphere, and cleaning (or no cleaning) all pile on.
No-clean is popular because it removes a whole cleaning step. Less equipment. Less handling. Faster flow.
But no-clean can also tighten your process window. If oxidation is heavy or your pads are not super fresh, no-clean sometimes struggles. You’ll see it as:
If you leave residues, you own the reliability story. That matters a lot when boards live in humid places or see condensation.
What can go wrong?
A practical approach is simple: if you go no-clean, build a validation routine (SIR style testing, ionic cleanliness checks, and humidity exposure on your worst-case assemblies). Do it before you ship volume.
Water-soluble (often called OA flux systems) usually gives strong activation. Translation: it can wet like a champ. It’s helpful when:
But water-soluble assumes you will clean. If you don’t clean well, you can leave residues that are not meant to stay.
Water-soluble systems can be more sensitive to moisture and handling. If paste sits open too long, or storage control isn’t tight, you may see:
This is where line discipline matters. Control open time. Track paste roll-in/roll-out. Keep humidity in check. It sounds boring, but it saves your yield.
Voids aren’t only a “profile” problem. Flux chemistry plays a big role because flux generates gas during heating. If gas can’t escape, you trap it.
Common void drivers that connect to flux type and formulation:
So when you chase voids, don’t only tweak soak time. Also ask: Is this paste designed for low-void work? Some no-clean formulations focus on low voiding. Others don’t.
Spatter is the sneaky defect. You won’t always see it on AOI, but it can:
Some flux types and chemistries spit more under certain ramp rates. If your oven looks like it’s “snowing” brown specks, don’t blame only the oven. Paste and flux chemistry may be the root.
Flux doesn’t work in a vacuum. Your profile tells flux when to activate, how fast to evaporate, and how long residues cook.
General shop-floor pattern (not a law, just what you often see):
Your goal is a “boring” profile. Boring is good. Boring makes quality stable.
Nitrogen can reduce oxidation during reflow. That can let you run lower-activity flux and still get solid wetting. But nitrogen isn’t a free lunch. If you switch atmosphere, re-check:
Also, nitrogen won’t fix bad paste storage or a stencil that’s seen better days.
Use this table during daily standup. It’s quick, and it points your troubleshooting in the right direction.
| Defect Symptom | Flux-Related Cause You Should Suspect | Fast Checks On The Line |
|---|---|---|
| Non-wet open / weak fillet | Low activity for the oxidation level, or flux “spent” from long open time | Check paste age, open time log, pad finish condition |
| Solder balls | Moisture sensitivity, slump, too aggressive evaporation | Check humidity, stencil underside wipe interval, ramp rate |
| High voiding on thermal pads | Volatile package + deposit geometry trapping gas | Compare paste type, adjust soak/ramp, review stencil aperture |
| Spatter spots around joints | Flux chemistry + ramp rate mismatch | Slow ramp slightly, verify paste batch, inspect oven deposits |
| Sticky residues / cosmetic haze | Residue not designed for your profile or atmosphere | Adjust soak, confirm no-clean expectations, run cleanliness test |
Small note: you might fix one defect and wake up another. That’s normal. Flux is a trade-off game.

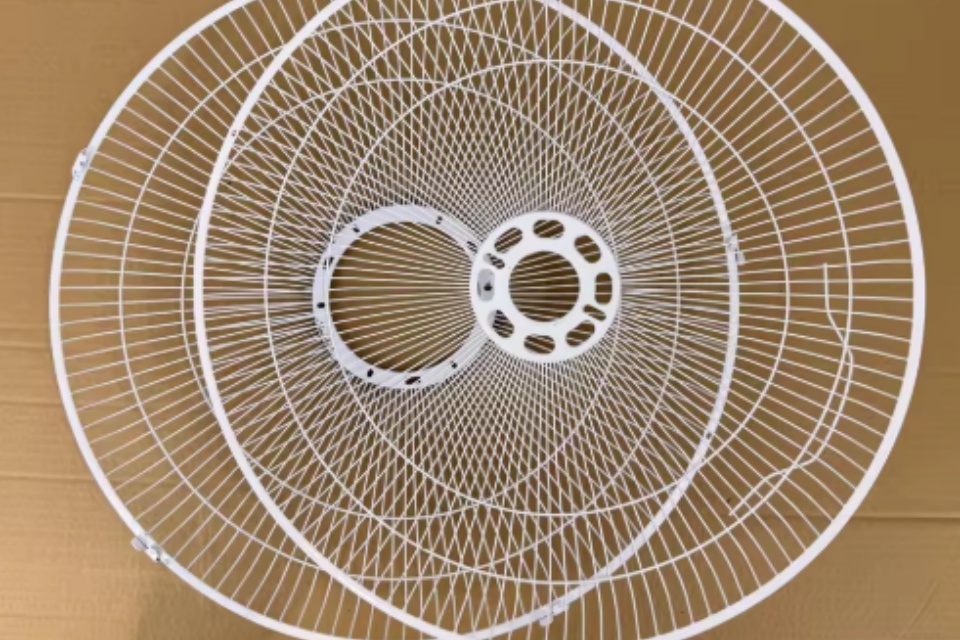

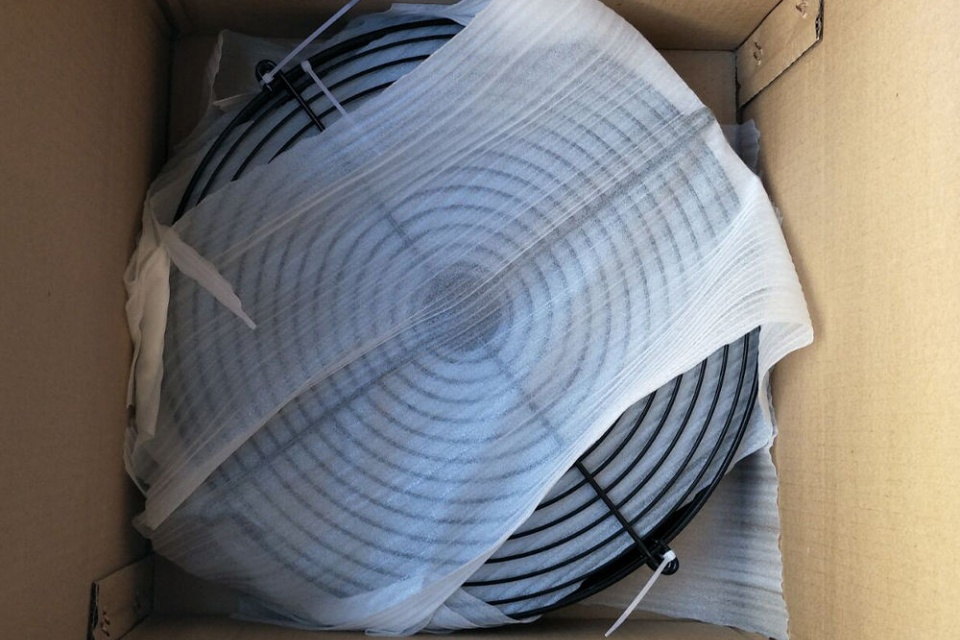

Now let’s connect this to your business and your product category: Fan Grill Guard.
Reflow ovens rely on stable airflow. Fans push heated air in zones. Exhaust fans pull volatiles out. If airflow drifts, flux behavior drifts too. Then wetting shifts, spatter shifts, voiding shifts. You get the idea.
A fan grill guard helps in very practical ways:
If you build or service reflow ovens, wave machines, or any forced-air heating equipment, a well-made wire guard is a simple part that prevents bigger downtime.
https://wireshelvingmfg.com/fan-grill-guard-fan-grill-guard/
A lot of SMT factories also buy Rear Mesh, cabinet components, and cold storage room components. They want one supplier that can build wire parts fast, with stable finish quality, and ship global.
“When we build wire parts for factories—like fan grill guard styles—QIAO focuses on consistent dimensions and durable finishes, so your equipment stays stable instead of drifting.”
(Also, small real talk: if your guard fit is off by even a bit, techs will bend it, install it wrong, or skip it. Then you’re back to broken fans and messy airflow. So build it right.)
Flux type isn’t a checkbox. It’s a process decision. No-clean can simplify your flow, but it can demand tighter control. Water-soluble can wet fast, but it expects strong cleaning discipline. And voiding/spatter can swing hard with chemistry changes.
If you want fewer surprises, do this:
Do that, and your reflow line stops feeling “random.” It starts to behave. Even if, sometimes, it still act a little weird — like any factory does.
